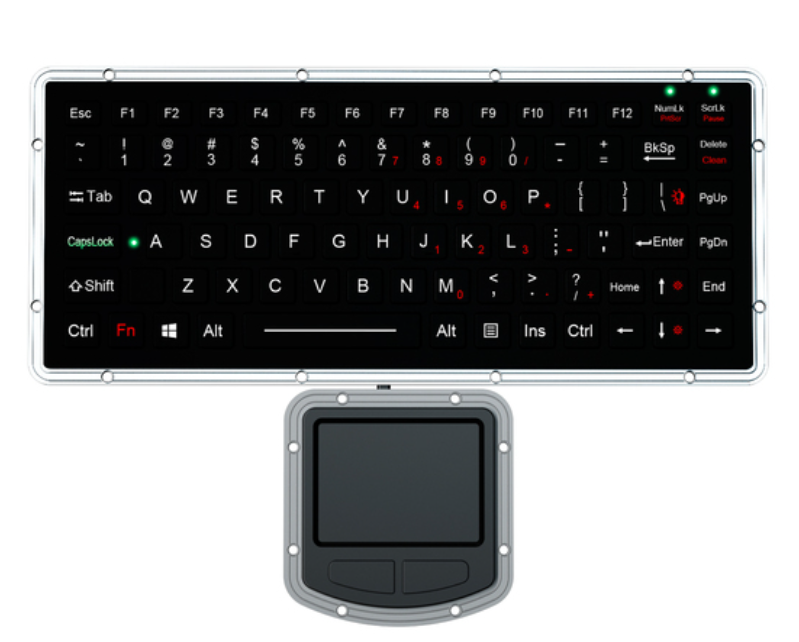

K-TEK-M270 Chiclet Keyboard

86-Key Rugged Keyboard with Touchpad

This IP65-rated, ultra-thin keyboard is built for tough environments, offering durability, hygiene, and precision.

  • Sealed 86-key design with 12 function keys (F1–F12)

  • Integrated rugged touchpad with left/right mouse buttons

  • Durable build using CNC aluminum alloy and military-grade PCB

  • Tactile, quiet typing with 1.20mm key travel

  • Anti-microbial surface resistant to chemicals and liquids

  • Rear panel mounting with pre-drilled holes

  • Easy-clean mode via FN + Clean key combo

Ideal for industrial and defence applications.

Category: Tags: , ,



Category： Chiclet Keyboard
Key Number： 86 keys + 2 mouse buttons
Key Travel： 1.50mm±0.10mm
Backlight： White
Interface： USB/PS2 optional
Key Switch： Carbon-on-gold
Protection Level： IP65 dynamic (front panel)
Mounting Solution： Rear panel mount
Operating Temperature： -40℃~+75℃
Mechanical Data
Key 86 keys + 2 mouse buttons, durable and robust polymer keys
Key top style Protuberant rectangular keys with tactile feeling
Key technology Military PCB with carbon-on-gold key switch technology
Key size 14.0mm x 10.0mm for FN keys, 14.0mm x 14.0mm for normal keys, 21.8mm x 14.0mm for Tab key,

68.0mm x 14.0mm for Space bar
Key travel 1.20mm±0.10mm
Actuation Force 1.0N±0.2N for normal keys and 1.5N±0.2N for Enter/Backspace/Shift/Capslock/Tab etc. keys
Touch pad sealed & ruggedised tough touchpad
Touchpad cover Composite
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution 40 Counts /mm
X/Y position report relative
Tracking speed Maximum 1,016 m/sec
Power supply voltage 5VDC ± 0.25V
Current rating (active mode) < 10 mA
G.W. ≈0.90kgs
Electrical Data
Supply Voltage DC +5V±5%
Current Rating 30mA when backlight is off, 300mA with backlight on
Lifespan > 5 years
Interface USB/PS2 optional
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos–To be confirmed).
Environmental Adaptability
Operating temperature -40℃ to +75℃
Storage temperature -45℃ to +85℃
Saline mist 96h, IEC60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
Humidity 3%~95%
Atmospheric pressure 60-106Kpa
RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.)
Protection Level IP65 dynamic (front panel)
Meet MIL-STD-461G (EMC, EMI, EMS, ESD):
1 CE101 25Hz – 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
2 CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
3 CS101 25Hz – 150kHz Conducted Susceptibility, Power Leads
4 CS106 Conducted Susceptibility, Transients, Power Leads
5 CS112 Electrostatic Discharge Susceptibility
6 CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
7 CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
8 CS116 10kHz – 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
9 RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
10 RE102 10kHz – 18GHz Radiated Emissions, Electric Field
11 RS101 25HZ – 100kHz Radiated Susceptibility, Magnetic Field
12 RS103 10kHz – 40GHz Radiated Susceptibility, Electric Field


MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation

etc.)
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, dust, salt mist, fungus, solar radiation etc.)
Protection Level IP65 dynamic (front panel)

For more information on this product and to talk to us about your custom solution, call us on 8363 0400, or send us an enquiry.
